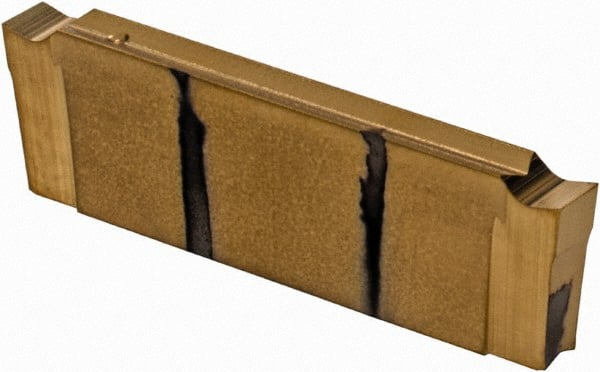

Iscar DGN2000P IC508 Carbide Grooving Insert Neutral, 2mm Cutting Width, 18mm Max Depth, Series Do-Grip 6003282 - 85109080
Brand: Iscar- SKU:
- 85109080
- ID:
- 649142
$44.60
Iscar DGN2000P IC508 Carbide Grooving Insert Neutral, 2mm Cutting Width, 18mm Max Depth, Series Do-Grip
Manufacturer Part #: 6003282
S/N: 85109080
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | DGN |
| Insert Size Code | 2000P |
| Cutting Width (Decimal Inch) | 0.0787 |
| Cutting Width (mm) | 2.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Maximum Depth of Cut (mm) | 18.00 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC508 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0020 |
| Corner Radius (mm) | 0.05 |
| Rake | Positive |
| Insert Holding Method | Self Grip |
| Insert Size | 2000 |
| Material Grade | Submicron |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Multi-use Tool | Yes |
| Series | Do-Grip |
| Coating Process | PVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 20.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Iso Code | DGN 2000P |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | DGN 2000P |
| Chip Breaker | P |
| Coating/Finish | TiCN, TiN |
| Single Or Double End | Double |
