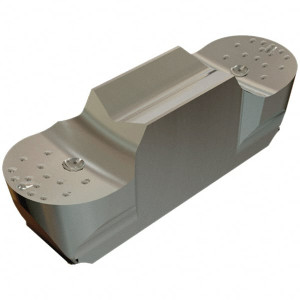

Iscar GEPI 3.00-1.50 IC908 Carbide Grooving Insert TiN/TiAlN Finish, Neutral, 3mm Cutting Width, 5mm Max Depth, Series Cut Grip 6403209 - 85136737
Brand: Iscar- SKU:
- 85136737
- ID:
- 649147
$51.37
Iscar GEPI 3.00-1.50 IC908 Carbide Grooving Insert TiN/TiAlN Finish, Neutral, 3mm Cutting Width, 5mm Max Depth, Series Cut Grip
Manufacturer Part #: 6403209
S/N: 85136737
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | GEPI |
| Insert Size Code | 300150 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Maximum Depth of Cut (mm) | 5.00 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0590 |
| Corner Radius (mm) | 1.50 |
| Rake | Positive |
| Insert Holding Method | Self Grip |
| Insert Size | 300150 |
| Material Grade | Submicron |
| Cutting Height (mm) | 2.90 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1500 to 0.2000 |
| Cutting Height (Decimal Inch) | 0.1140 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Multi-use Tool | Yes |
| Series | Cut Grip |
| Coating Process | PVD |
| Rake Angle | 8.00 |
| Overall Length (Decimal Inch) | 0.3940 |
| Overall Length (mm) | 10.01 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, P, S |
| Iso Code | GEPI 3.00-1.50 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | GEPI 3.00-1.50 |
| Coating/Finish | TiAlN |
| Single Or Double End | Double |
