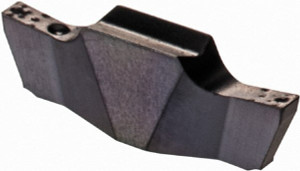

Iscar GEPI 1.00-0.10 IC908 Carbide Grooving Insert TiN/TiAlN Finish, Neutral, 1mm Cutting Width, 1.6mm Max Depth, Series Cut Grip 6403329 - 85136992
Brand: Iscar- SKU:
- 85136992
- ID:
- 649149
$46.22
Iscar GEPI 1.00-0.10 IC908 Carbide Grooving Insert TiN/TiAlN Finish, Neutral, 1mm Cutting Width, 1.6mm Max Depth, Series Cut Grip
Manufacturer Part #: 6403329
S/N: 85136992
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | GEPI |
| Insert Size Code | 100010 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Cutting Width (mm) | 1.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0630 |
| Maximum Depth of Cut (mm) | 1.60 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (mm) | 0.10 |
| Rake | Positive |
| Insert Holding Method | Self Grip |
| Insert Size | 100010 |
| Material Grade | Submicron |
| Cutting Height (mm) | 2.90 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Cutting Height (Decimal Inch) | 0.1140 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Multi-use Tool | No |
| Series | Cut Grip |
| Coating Process | PVD |
| Rake Angle | 8.00 |
| Overall Length (Decimal Inch) | 0.3940 |
| Overall Length (mm) | 10.01 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, P, S |
| Iso Code | GEPI 1.00-0.10 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | GEPI 1.00-0.10 |
| Coating/Finish | TiAlN |
| Single Or Double End | Double |
