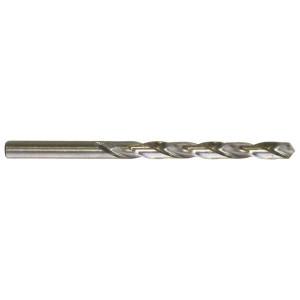

Cleveland Twist Drill #36 118° High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 2-1/2" OAL, Split Point C73464 - 85192409
Brand: Cleveland Twist Drill- SKU:
- 85192409
- ID:
- 717474
$3.10
Cleveland Twist Drill #36 118° High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 2-1/2" OAL, Split Point
Manufacturer Part #: C73464
S/N: 85192409
UNSPSC: 23241634
UPC: 634925934883
(Minimum Order Quantity=12)
(Please order in multiples of 12)
Specifications:
| Drill Bit Size (Wire) | #36 |
| Drill Bit Size (Decimal Inch) | 0.1065 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 118 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Aluminum |
| Specification Number | NAS 907 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Bright/Uncoated |
| Flute Length (Inch) | 1-7/16 |
| Shank Diameter (Decimal Inch) | 0.1065 |
| Overall Length (mm) | 63.50 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Spiral Type | Regular |
| Series | 2228 |
| Shank Length (mm) | 26.99 |
| Shank Length (Decimal Inch) | 1.0625 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Standards | NAS 907 Type A |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Specification Designation | NAS |
| UNSPSC Code | 23241634 |
