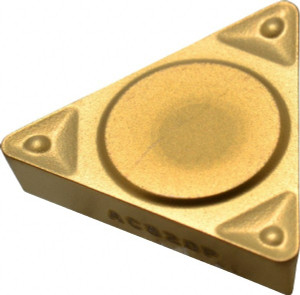

Sumitomo TPMR322ENF AC820P Carbide Turning Insert 3/8" Inscribed Circle, 1/32" Corner Radius, 60° Triangle 19RJ486 - 85437499
Brand: Sumitomo- SKU:
- 85437499
- ID:
- 677459
$17.07
Sumitomo TPMR322ENF AC820P Carbide Turning Insert 3/8" Inscribed Circle, 1/32" Corner Radius, 60° Triangle
Manufacturer Part #: 19RJ486
S/N: 85437499
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 11 |
| Insert Style | TPMR |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 60.0 |
| Manufacturer Grade | AC820P |
| Coating/Finish | Coated |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | TPMR |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Solid Carbide |
| Insert Shape | Triangle |
| Insert Shape Code | T |
| Insert Holding Method | Clamp |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6496 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | TPMR322ENF |
| Iso Code | TPMR160308N-SF |
| Standards | ANSI, ISO 13399 |
| Material Grade | C5A, C6, C7, C8 |
| Chip Breaker | ENF |
| Insert Size Code | 322 |
