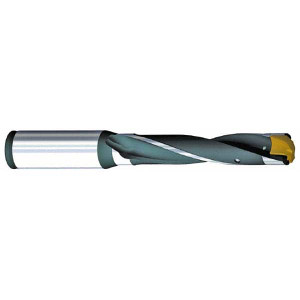

Kennametal 26.2 to 26.7mm, 5xD, 140mm Max Depth, 1-1/4" Shank Diam, 173.78mm Flute, 260.35mm OAL, Replaceable-Tip Drill Uses KSEM1031 Inserts, Seat Size 6, Series KSEM 1329704 - 85514644
Brand: Kennametal- SKU:
- 85514644
- ID:
- 645595
$907.07
Kennametal 26.2 to 26.7mm, 5xD, 140mm Max Depth, 1-1/4" Shank Diam, 173.78mm Flute, 260.35mm OAL, Replaceable-Tip Drill Uses KSEM1031 Inserts, Seat Size 6, Series KSEM
Manufacturer Part #: 1329704
S/N: 85514644
UNSPSC: 23291502
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Drill Diameter (Decimal Inch) | 1.0315 |
| Minimum Drill Diameter (mm) | 26.20 |
| Maximum Drill Diameter (mm) | 26.70 |
| Maximum Drill Diameter (Decimal Inch) | 1.0512 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 140.00 |
| Maximum Drill Depth (Decimal Inch) | 5.5100 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 6 |
| Shank Diameter (mm) | 31.75mm |
| Maximum Drill Depth Range (Decimal Inch) | 4.5000 to 6.0000 |
| Maximum Drill Depth Range (mm) | 125.00 to 160.00 |
| Compatible Insert Style | KSEM1031 |
| Overall Length (mm) | 260.35mm |
| Overall Length (Decimal Inch) | 10.2500in |
| Series | KSEM |
| Flute Length (mm) | 173.78 |
| Flute Length (Decimal Inch) | 6.8417 |
| Shank Length (Decimal Inch) | 3.2500in |
| Shank Length (mm) | 82.55mm |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
