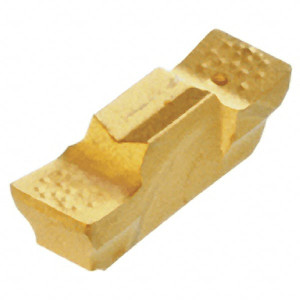

Iscar GEPI 2.22-0.10 IC08 Carbide Grooving Insert Uncoated, Neutral, 2.22mm Cutting Width, 9mm Max Depth, Series Cut Grip 6403395 - 85561702
Brand: Iscar- SKU:
- 85561702
- ID:
- 649146
$36.85
Iscar GEPI 2.22-0.10 IC08 Carbide Grooving Insert Uncoated, Neutral, 2.22mm Cutting Width, 9mm Max Depth, Series Cut Grip
Manufacturer Part #: 6403395
S/N: 85561702
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | GEPI |
| Insert Size Code | 222010 |
| Cutting Width (Decimal Inch) | 0.0874 |
| Cutting Width (mm) | 2.22 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Maximum Depth of Cut (mm) | 9.00 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC08 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.10 |
| Rake | Positive |
| Insert Holding Method | Clamp |
| Insert Size | 222010 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Multi-use Tool | Yes |
| Series | Cut Grip |
| Rake Angle | 8.00 |
| Overall Length (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 10.00 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Overall Width (mm) | 2.22 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0874 |
| Coating/Finish | Uncoated |
| Single Or Double End | Double |
