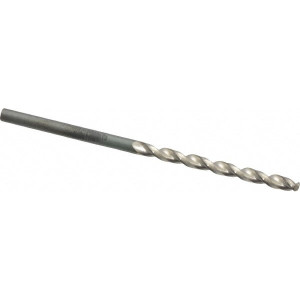

Guhring #36 130° High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-13/32" OAL, Standard Point 9005490027100 - 85743367
Brand: Guhring- SKU:
- 85743367
- ID:
- 719473
$11.75
Guhring #36 130° High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-13/32" OAL, Standard Point
Manufacturer Part #: 9005490027100
S/N: 85743367
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #36 |
| Drill Bit Size (Decimal Inch) | 0.1065 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Steel, Cast Iron, Aluminum & Non-Ferrous |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 1-5/16 |
| Primary Workpiece Material Code | K, N, P |
| Shank Diameter (Decimal Inch) | 0.1067 |
| Overall Length (mm) | 61.12 |
| Overall Length (Inch) | 2-13/32 |
| Overall Length (Decimal Inch) | 2.4063 |
| Flute Length (mm) | 33.34 |
| Flute Length (Decimal Inch) | 1.3125 |
| Series | 549 |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 1.1390 |
| Maximum Drilling Depth (mm) | 28.94 |
| Shank Length (mm) | 28 |
| Drill Bit Diameter Tolerance | -0.014 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
