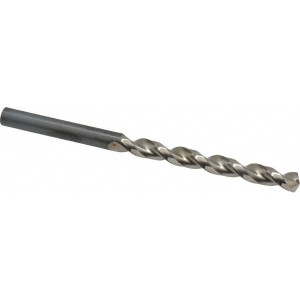

Guhring Letter D 130° High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-31/32" OAL, Standard Point 9005490062500 - 85745040
Brand: Guhring- SKU:
- 85745040
- ID:
- 719964
$26.21
Guhring Letter D 130° High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-31/32" OAL, Standard Point
Manufacturer Part #: 9005490062500
S/N: 85745040
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Letter) | D |
| Drill Bit Size (Decimal Inch) | 0.2461 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Aluminum |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Bright/Uncoated |
| Flute Length (Inch) | 2-15/32 |
| Primary Workpiece Material Code | K, N, P |
| Shank Diameter (Decimal Inch) | 0.2461 |
| Overall Length (Inch) | 3-31/32 |
| Series | 549 |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 2.1110 |
| Maximum Drilling Depth (mm) | 53.63 |
| Shank Length (mm) | 38.00 |
| Drill Bit Diameter Tolerance | -0.022 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Standards | DIN 338 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
