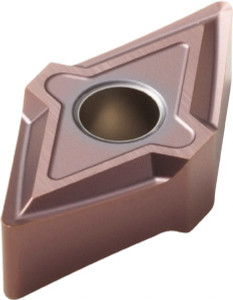

Seco Tools DNMP 431-MF1 TH1000 Carbide Turning Insert TiAlSiN Finish, 1/2" Inscribed Circle, 1/64" Corner Radius, 55° Diamond 02790719 - 85884138
Brand: Seco Tools- SKU:
- 85884138
- ID:
- 676214
$32.95
Seco Tools DNMP 431-MF1 TH1000 Carbide Turning Insert TiAlSiN Finish, 1/2" Inscribed Circle, 1/64" Corner Radius, 55° Diamond
Manufacturer Part #: 02790719
S/N: 85884138
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | DNMP |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55degree |
| Manufacturer Grade | TH1000 |
| Coating/Finish | TiAlSiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | DNMP-MF1 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | Diamond 55 |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2028 |
| Maximum Depth of Cut (Decimal Inch) | 0.5945 |
| Insert Holding Method | Clamp, Pin, Lever Lock |
| Width (Inch) | 1/2in |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.2204 |
| Primary Workpiece Material | Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | S, H |
| Iso Code | DNMG150404-MF1 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 02790719 |
| Material Grade | S05, H05 |
| Proprietary Coating Designation | Multilayer Coating |
| Lead Angle | 55degree |
| Coating Classification | PVD |
| Chip Breaker | MF1 |
| Cutting Edge Style | Honed |
| Industry Standard Number | DNMP431-MF1 |
| Width (Decimal Inch - 4 Decimals) | 0.5000in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Turning, Boring, Facing, Turning |
| UNSPSC Code | 23242105 |
| Insert Size Code | 431 |
