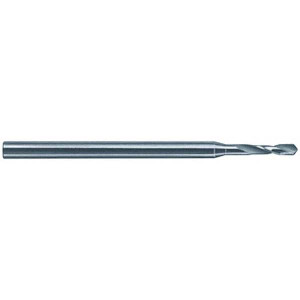

Guhring #59, 118° Point, Cobalt Micro Drill Bit 0.984" OAL, 6.8mm Flute Length, 1.5mm Shank Diam, Series 660 9006600010400 - 85892040
Brand: Guhring- SKU:
- 85892040
- ID:
- 731523
$49.61
Guhring #59, 118° Point, Cobalt Micro Drill Bit 0.984" OAL, 6.8mm Flute Length, 1.5mm Shank Diam, Series 660
Manufacturer Part #: 9006600010400
S/N: 85892040
UNSPSC: 23241600
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Drill Bit Size (Wire) | #59 |
| Drill Bit Size (Decimal Inch) | 0.0409 |
| Tool Material | Cobalt |
| Flute Length (mm) | 6.80 |
| Coating/Finish | TiN |
| Coolant Through | No |
| Drill Point Angle | 118 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 5.24 |
| Maximum Drilling Depth (Decimal Inch) | 0.2060 |
| Series | 660 |
| Overall Length (Decimal Inch) | 0.9840in |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Faceted |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance | +0.000 to -0.004 mm |
| Primary Workpiece Material | Aluminum |
| Primary Workpiece Material Code | K, M, N, P |
| Secondary Workpiece Material | Titanium Alloy |
| Secondary Workpiece Material Code | S |
| Shank Diameter (mm) | 1.50mm |
| Flute By Diameter Ratio | 5xD |
| Spiral Type | Regular |
| Specification Number | DIN 1899 |
| UNSPSC Code | 23241600 |
