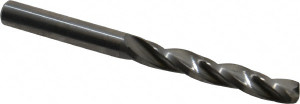

Guhring 5.5mm 150° Solid Carbide Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 66mm OAL, Standard Point 9014520055000 - 85975605
Brand: Guhring- SKU:
- 85975605
- ID:
- 721219
$88.66
Guhring 5.5mm 150° Solid Carbide Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 66mm OAL, Standard Point
Manufacturer Part #: 9014520055000
S/N: 85975605
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 5.50 |
| Drill Bit Size (Decimal Inch) | 0.2165 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 150 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Specification Number | DIN 6539 |
| Coolant Through | No |
| Number of Flutes | 3 |
| Drill Bit Finish/Coating | Bright/Uncoated |
| Shank Diameter (Decimal Inch) | 0.2165 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Spiral Type | Regular |
| Flute Length (mm) | 39.00 |
| Flute Length (Decimal Inch) | 1.5354 |
| Series | 1452 |
| Tool Application | Self-Centering |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 1.2100 |
| Maximum Drilling Depth (mm) | 30.75 |
| Shank Length (mm) | 27.00 |
| Drill Bit Diameter Tolerance | -0.012 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Standards | DIN 6539 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Drill Bit Size Range (mm) | 5.00 - 6.00 |
| Material Grade | Submicron |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
