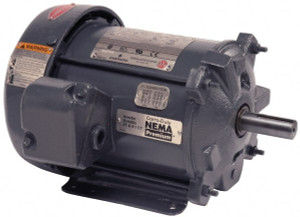

U.S. Motors 20 hp, TEFC Enclosure, No Thermal Protection, 1,770 RPM, 230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor Size 256 Frame, Rigid Mount, 1 Speed, Ball Bearings, 48/24 Full Load Amps, F Class Insulation, Reversible C20P2B - 86337284
Brand: U.S. Motors- SKU:
- 86337284
- ID:
- 573934
$4,138.58
U.S. Motors 20 hp, TEFC Enclosure, No Thermal Protection, 1,770 RPM, 230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor Size 256 Frame, Rigid Mount, 1 Speed, Ball Bearings, 48/24 Full Load Amps, F Class Insulation, Reversible
Manufacturer Part #: C20P2B
S/N: 86337284
UNSPSC: 26100000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Motor Type | Three Phase Premium Efficient |
| Phase | 3 |
| Enclosure Style | TEFC |
| Horsepower | 20 |
| Name Plate RPMs | 1770 |
| Voltage | 230, 460V |
| Frequency (Hz - 0 Decimals) | 60 |
| Frame Size | 256 |
| Mount Style | Rigid |
| Mount Type | Rigid |
| Bearing Type | Ball |
| Number Of Phases | 1 |
| Full Load Amperage | 48/24 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Full Load Efficiency Rating | 93.00 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| Applications | General Purpose |
| Overall Length (Decimal Inch) | 25.0000 |
| Ambient Operating Temperature (F) | 40 |
| Thermal Protection | None |
| Number Of Speeds | 1 |
| Type | TEFC |
| Product Service Code | 6105 |
