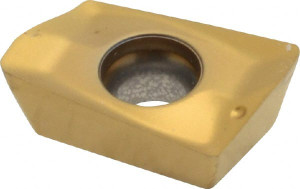

Seco Tools XOEX120408FR-E06 F40M Carbide Milling Insert TiAlN/TiN Finish, 0.479" Long x 0.199" Thick x 0.322" Wide 00005981 - 86736550
Brand: Seco Tools- SKU:
- 86736550
- ID:
- 662836
$39.15
Seco Tools XOEX120408FR-E06 F40M Carbide Milling Insert TiAlN/TiN Finish, 0.479" Long x 0.199" Thick x 0.322" Wide
Manufacturer Part #: 00005981
S/N: 86736550
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | XOEX |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | F40M |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1980 |
| Coating/Finish | TiAlN, TiN |
| Relief Angle | 15 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Insert Size Code | 120408 |
| Material Grade | Fine Grain |
| Inscribed Circle (Decimal Inch) | 0.3228 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Series | XOEX-12 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1535 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4724 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Cast Iron, Superalloys & Titanium |
| Primary Workpiece Material Code | P, K, S |
| Secondary Workpiece Material | Cast Iron, Non-Ferrous Metal |
| Secondary Workpiece Material Code | K, N |
| Ansi Code | XOEX120408FR-E06 |
| Iso Code | XOEX120408FR-E06 |
| Standards | ISO |
| Rake Angle | 27.2 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | XOEX120408FR-E06 |
| Cutter Series Compatibility | R217.69-12, R220.69-12 |
| Chip Breaker | E06 |
| Material Application | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3228 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4724 |
