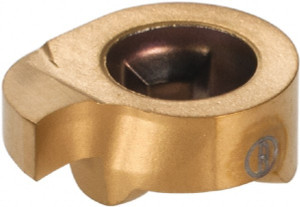

Iscar GIQR 11-2.22-0.10IC528 Carbide Grooving Insert TiCN/TiN Finish, RH, 2.22mm Cutting Width, 2.3mm Max Depth, Series ChamGroove 6402640 - 86741444

Iscar GIQR 11-2.22-0.10IC528 Carbide Grooving Insert TiCN/TiN Finish, RH, 2.22mm Cutting Width, 2.3mm Max Depth, Series ChamGroove 6402640 - 86741444

Brand:   Iscar
SKU:
86741444
ID:
649182
callling
$39.24
Current Stock:
Minimum Purchase:
10 units
Adding to cart… The item has been added

Iscar

Iscar GIQR 11-2.22-0.10IC528 Carbide Grooving Insert TiCN/TiN Finish, RH, 2.22mm Cutting Width, 2.3mm Max Depth, Series ChamGroove

Manufacturer Part #: 6402640

S/N: 86741444

UNSPSC: 23242105

(Minimum Order Quantity=10)

(Please order in multiples of 10)

Specifications:

Insert StyleGIQR
Insert Size Code11222010
Cutting Width (Decimal Inch)0.0874
Cutting Width (mm)2.22
Insert HandRight Hand
Maximum Depth of Cut (Decimal Inch)0.0906
Maximum Depth of Cut (mm)2.30
Insert MaterialSolid Carbide
Manufacturer GradeIC528
Full RadiusNo
Corner Radius (Decimal Inch)0.0039
Corner Radius (mm)0.10
Insert Holding MethodScrew
Insert Size11222010
Maximum Depth Of Cut Range (Decimal Inch)0.0750 to 0.1000
Maximum Depth Of Cut Range (mm)2.00 to 3.00
Multi-use ToolYes
SeriesChamGroove
Coating ProcessPVD
Overall Length (Decimal Inch)0.4205
Overall Length (mm)10.68
Primary Workpiece MaterialSuperalloy, Titanium
Primary Workpiece Material CodeM, P, S
Iso CodeISO 13399
StandardsISO 13399
Coating/FinishTiCN, TiN
Single Or Double EndSingle
Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.
