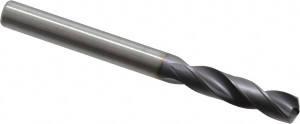

Kennametal 6mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit Multilayer TiAlN Finish, Right Hand Cut, 28mm Flute Length, 66mm OAL, Standard Point, Straight Shank 1913480 - 86973435
Brand: Kennametal- SKU:
- 86973435
- ID:
- 737764
$85.90
Kennametal 6mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit Multilayer TiAlN Finish, Right Hand Cut, 28mm Flute Length, 66mm OAL, Standard Point, Straight Shank
Manufacturer Part #: 1913480
S/N: 86973435
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 6.00 |
| Drill Bit Size (Decimal Inch) | 0.2362 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multilayer TiAlN |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | Standard |
| Primary Workpiece Material | Cast Iron, Steel |
| Overall Length (mm) | 66.00 |
| Shank Diameter (mm) | 6.00 |
| Series | B966 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Maximum Drilling Depth (Decimal Inch) | 0.7874 |
| Maximum Drilling Depth (mm) | 20.00 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 1.00 |
| Drill Bit Diameter Tolerance | +0.004 to +0.016 mm |
| Flute Length (mm) | 28.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Drill Bit Size Range (mm) | 5.00 to 6.50 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
