Kennametal NG3062RK KCU25 Carbide Grooving Insert AlTiN Finish, RH, 0.0622" Cutting Width, 0.0941" Max Depth, Series Top Notch 4109783 - 87084919
Brand: Kennametal- SKU:
- 87084919
- ID:
- 650597
$40.58

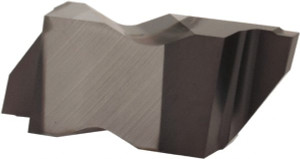

Kennametal NG3062RK KCU25 Carbide Grooving Insert AlTiN Finish, RH, 0.0622" Cutting Width, 0.0941" Max Depth, Series Top Notch
Manufacturer Part #: 4109783
S/N: 87084919
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NG |
| Cutting Width (Decimal Inch) | 0.0622 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0941 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCU25 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0075 |
| Rake | Neutral |
| Insert Size | 3062 |
| Cutting Height (mm) | 8.74 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Lead Angle | 0 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | PVD |
| Rake Angle | 0.00 |
| Insert Seat Size | 3 |
| MSC/Manufacturer Number | NG3062R/LK |
| Included Angle Degree | 55 |
| Coating/Finish | AlTiN |
| Single Or Double End | Double |
