Vargus 3JER18NPT VCB Carbide Laydown Threading Insert TiAlN Finish, RH External NPT Thread, 18 TPI, 3/8" Inscribed Circle 53686 - 87509352
Brand: Vargus- SKU:
- 87509352
- ID:
- 666001
$28.83

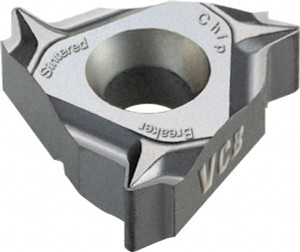

Vargus 3JER18NPT VCB Carbide Laydown Threading Insert TiAlN Finish, RH External NPT Thread, 18 TPI, 3/8" Inscribed Circle
Manufacturer Part #: 53686
S/N: 87509352
UNSPSC: 23291804
(Minimum Order Quantity=10, Package Quantity=1)
(Please order in multiples of 10)
Specifications:
| Insert Style | 3ER | ||
| Insert Size Code | 3 | ||
| Insert Material | Solid Carbide | ||
| Manufacturer Grade | VCB | ||
| Threads Per Inch | 18 | ||
| Thread Type | External | ||
| Thread Standard | NPT | ||
| Insert Hand | Right Hand | ||
| Included Angle | 60 | ||
| Chipbreaker | SCB | ||
| Series | Standard | ||
| Coating Process | PVD | ||
| Inscribed Circle (Decimal Inch) | 0.3750 | ||
| Inscribed Circle (Inch) | 3/8 | ||
| Primary Workpiece Material | Universal | ||
| Primary Workpiece Material Code | H, K, M, N, P, S | ||
| Ansi Code | ANSI B1.1 | 74 | |
| Standards | ANSI B1.1 | 74, ISO 9001 | 2008 |
| Coating/Finish | Coated |
