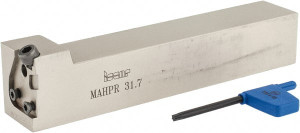

Iscar External Right Hand Indexable Grooving Toolholder 7" OAL, 1-1/4" x 1-1/4" Shank, MAHP Toolholder, Series Modular Grip 2801264 - 87787784
Brand: Iscar- SKU:
- 87787784
- ID:
- 685535
$330.72
Iscar External Right Hand Indexable Grooving Toolholder 7" OAL, 1-1/4" x 1-1/4" Shank, MAHP Toolholder, Series Modular Grip
Manufacturer Part #: 2801264
S/N: 87787784
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Toolholder Type | Non-Face Grooving |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Toolholder Style | MAHP |
| Insert Holding Method | Clamp |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Series | Modular Grip |
| Shank Length (Decimal Inch) | 6.0200 |
| Overall Length (Inch) | 7 |
| Overall Length (mm) | 177.80 |
| Overall Length (Decimal Inch) | 7.0000 |
| Multi-use Tool | Yes |
| Head Length (Decimal Inch) | 0.9800 |
| Standards | ISO 13399 |
| MSC/Manufacturer Number | MAHPR/L 31.7 |
| Coolant Through | No |
