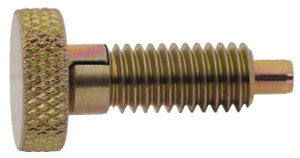

Vlier M12x1.75, 0.65" Thread Length, 1/4" Max Plunger Diam, 0.5 Lb Init to 4 Lb Final End Force, Locking Knob Handle Plunger Knurled Knob, 17mm Body Length, 0.9" Length Under Head/Shoulder, 1/4" Plunger Projection SLFM12P - 87881066
Brand: Vlier- SKU:
- 87881066
- ID:
- 447142
$24.43
Vlier M12x1.75, 0.65" Thread Length, 1/4" Max Plunger Diam, 0.5 Lb Init to 4 Lb Final End Force, Locking Knob Handle Plunger Knurled Knob, 17mm Body Length, 0.9" Length Under Head/Shoulder, 1/4" Plunger Projection
Manufacturer Part #: SLFM12P
S/N: 87881066
UNSPSC: 39121500
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Length (mm) | 16.51 |
| Thread Length (Decimal Inch) | 0.65in, 16.51mm |
| Plunger Projection | 0.25in, 6.35mm |
| Plunger Length | 1.4in, 35.56mm |
| Plunger Type | Locking |
| Initial End Force | 2.22N, 0.5lb |
| Knob Style | Knurled |
| Final End Force | 17.8N, 4lb |
| Body Length (mm) | 17.00 |
| Thread Size | M12x1.75 |
| Length Under Head/Shoulder (mm) | 22.86 |
| Length Under Head/Shoulder (Decimal Inch) | 0.9000 |
| Plunger Projection (mm) | 6.35 |
| Plunger Projection (Decimal Inch) | 0.2500 |
| Maximum Plunger Diameter (mm) | 6.35 |
| Maximum Plunger Diameter (Decimal Inch) | 0.2500 |
| Initial End Force (N) | 2.22 |
| Initial End Force (Lb.) | 0.50 |
| Body Length | 17mm |
| Final End Force (N) | 17.80 |
| Final End Force (Lb.) | 4.00 |
| Locking Element | Yes |
| Maximum Plunger Diameter | 0.25in, 6.35mm |
| Hex Size | 12mm |
| Material | Steel |
| Finish | Zinc Gold Chromate |
| Plunger Length (mm) | 35.56 |
| Plunger Length (Decimal Inch) | 1.4000 |
| Head Diameter (mm) | 25.40 |
| Head Diameter (Decimal Inch) | 1in, 25.4mm |
| Head Height (mm) | 12.70 |
| Head Height (Decimal Inch) | 0.5in, 12.7mm |
| Hex Size (mm) | 12.00 |
