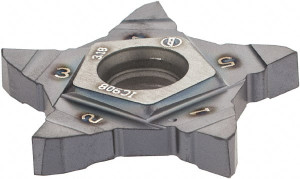

Iscar PENTA24N318-020LS IC90 Carbide Grooving Insert TiAlN Finish, LH, 1/8" Cutting Width, 0.256" Max Depth, Series PENTA 6099564 - 88156526

Iscar PENTA24N318-020LS IC90 Carbide Grooving Insert TiAlN Finish, LH, 1/8" Cutting Width, 0.256" Max Depth, Series PENTA 6099564 - 88156526

Brand:   Iscar
SKU:
88156526
ID:
649477
callling
$80.70
Current Stock:
Minimum Purchase:
5 units
Adding to cart… The item has been added

Iscar

Iscar PENTA24N318-020LS IC90 Carbide Grooving Insert TiAlN Finish, LH, 1/8" Cutting Width, 0.256" Max Depth, Series PENTA

Manufacturer Part #: 6099564

S/N: 88156526

UNSPSC: 23242105

(Minimum Order Quantity=5)

(Please order in multiples of 5)

Specifications:

Insert StylePENTA
Insert Size Code24N318NF020
Cutting Width (Decimal Inch)0.1250
Insert HandLeft Hand
Maximum Depth of Cut (Decimal Inch)0.2560
Insert MaterialSolid Carbide
Manufacturer GradeIC908
Full RadiusNo
Corner Radius (Decimal Inch)0.0080
Insert Size24N318020
Material GradeC1, C2, C6, C7
Maximum Depth Of Cut Range (Decimal Inch)0.2000 to 0.3000
Multi-use ToolNo
SeriesPENTA
Coating ProcessPVD
Primary Workpiece MaterialUniversal
Primary Workpiece Material CodeH, K, M, P, S
Iso CodeISO 13399
StandardsISO 13399
Manufacturers Catalog NumberPENTA 24N318NF020LS
Chip BreakerNF
Coating/FinishTiAlN
