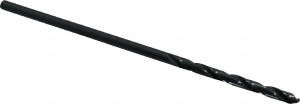

Chicago-Latrobe 0.1935" Diam, 6" OAL Oxide High Speed Steel Aircraft Extension Drill Bit 135° Point Angle 11040 - 88213020
Brand: Chicago-Latrobe- SKU:
- 88213020
- ID:
- 707578
$7.36
Chicago-Latrobe 0.1935" Diam, 6" OAL Oxide High Speed Steel Aircraft Extension Drill Bit 135° Point Angle
Manufacturer Part #: 11040
S/N: 88213020
UNSPSC: 23241637
(Minimum Order Quantity=12)
(Please order in multiples of 12)
Specifications:
| Drill Bit Size (Wire) | #10 |
| Overall Length (Inch) | 6 |
| Tool Material | High-Speed Steel |
| Coating/Finish | Oxide |
| Series | 906 |
| Drill Point Angle (Degrees) | 135 |
| Drill Bit Size (Decimal Inch) | 0.1935 |
| Shank Type | Straight-Cylindrical |
| Flute Type | Spiral |
| Flute Length (Inch) | 2-7/16 |
| Flute Length (Decimal Inch) | 2.4375 |
| Cutting Direction | Right Hand |
| Self-Centering | Yes |
| Point Type | Split |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
| Shank Diameter (Decimal Inch) | 0.1935 |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | General Purpose |
| Standards | NAS 907 Type B |
| UNSPSC Code | 23241637 |
