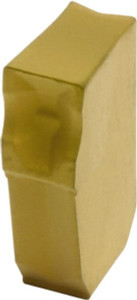

Sumitomo WCFN3A AC225 Carbide Cutoff Insert Al2O3 Finish, 0° Neutral Lead Angle, 0.1181" Cutting Width, 0.0078" Corner Radius, Series WCF 1G25010 - 88701693
Brand: Sumitomo- SKU:
- 88701693
- ID:
- 647974
$16.73
Sumitomo WCFN3A AC225 Carbide Cutoff Insert Al2O3 Finish, 0° Neutral Lead Angle, 0.1181" Cutting Width, 0.0078" Corner Radius, Series WCF
Manufacturer Part #: 1G25010
S/N: 88701693
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | WCF |
| Insert Size Code | 3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC225 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Insert Holding Method | Self Grip |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Corner Radius (Decimal Inch) | 0.0078 |
| Chipbreaker | A |
| Multi-use Tool | Yes |
| Cutting Tool Application | Chamfering, Cut-off, Grooving |
| Series | WCF |
| Coating Process | CVD |
| Primary Workpiece Material | Cast Iron, Stainless Steel, Steel |
| Primary Workpiece Material Code | K, M, P |
| Material Grade | C4 |
| Full Radius | No |
| Coating/Finish | Coated |
| Single Or Double End | Single |
