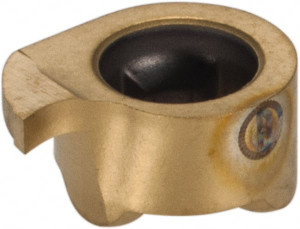

Iscar GIQR 8-1.00-0.00 IC528 Carbide Grooving Insert TiCN/TiN Finish, RH, 1mm Cutting Width, 1.5mm Max Depth, Series ChamGroove 6402604 - 88856778
Brand: Iscar- SKU:
- 88856778
- ID:
- 649199
$38.78
Iscar GIQR 8-1.00-0.00 IC528 Carbide Grooving Insert TiCN/TiN Finish, RH, 1mm Cutting Width, 1.5mm Max Depth, Series ChamGroove
Manufacturer Part #: 6402604
S/N: 88856778
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | GIQR |
| Insert Size Code | 8100000 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Cutting Width (mm) | 1.00 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 1.50 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC528 |
| Full Radius | No |
| Insert Holding Method | Screw |
| Insert Size | 8100000 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Multi-use Tool | Yes |
| Series | ChamGroove |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.3063 |
| Overall Length (mm) | 7.78 |
| Primary Workpiece Material | Superalloy, Titanium |
| Primary Workpiece Material Code | M, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Coating/Finish | TiCN, TiN |
| Single Or Double End | Single |
