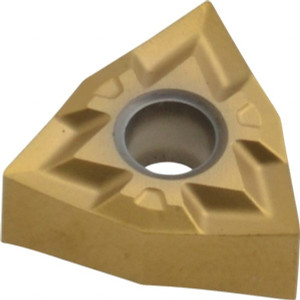

Seco Tools WNGP330.5MF1 CP200 Carbide Turning Insert TiAlN/TiN Finish, 3/8" Inscribed Circle, 0.008" Corner Radius, 3/16" Thick, 80° Trigon 00072302 - 88876933
Brand: Seco Tools- SKU:
- 88876933
- ID:
- 676669
$32.32
Seco Tools WNGP330.5MF1 CP200 Carbide Turning Insert TiAlN/TiN Finish, 3/8" Inscribed Circle, 0.008" Corner Radius, 3/16" Thick, 80° Trigon
Manufacturer Part #: 00072302
S/N: 88876933
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | WNGP |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 80degree |
| Manufacturer Grade | CP200 |
| Coating/Finish | TiAlN, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | WNGP-MF1 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | Trigon |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Insert Holding Method | Clamp, Pin, Lever Lock |
| Width (Inch) | 3/8in |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5196 |
| Primary Workpiece Material | Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | M, S |
| Secondary Workpiece Material | Steel, Cast Iron |
| Secondary Workpiece Material Code | P, K |
| Iso Code | WNGG060402-MF1 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 00072302 |
| Material Grade | M01, M10, M20, S10, S20 |
| Proprietary Coating Designation | Multilayer Coating |
| Lead Angle | 80degree |
| Coating Classification | PVD |
| Chip Breaker | MF1 |
| Cutting Edge Style | Sharp |
| Industry Standard Number | WNGP330.5-MF1 |
| Width (Decimal Inch - 4 Decimals) | 0.3750in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Boring, Facing, Turning |
| UNSPSC Code | 23242105 |
| Insert Size Code | 330.5 |
