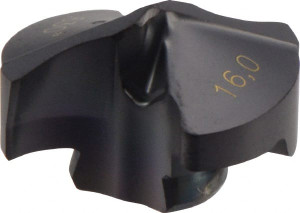

Iscar IDI0630-SG IC-908 Carbide Replaceable Tip Drill TiAlN Finish, 140° Included Angle, 0.63" Diam, 0.291mm High, Series IDI-SG 5504850 - 89020911
Brand: Iscar- SKU:
- 89020911
- ID:
- 656741
$127.57
Iscar IDI0630-SG IC-908 Carbide Replaceable Tip Drill TiAlN Finish, 140° Included Angle, 0.63" Diam, 0.291mm High, Series IDI-SG
Manufacturer Part #: 5504850
S/N: 89020911
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Cutting Diameter (Decimal Inch) | 0.6300 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Material Grade | Submicron |
| Series | IDI-SG |
| Coating Process | PVD |
| Insert Geometry | SG |
| Insert Seat Size | 16 |
| Functional Length (Decimal Inch) | 0.1960 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, S, H |
| Standards | ISO 13399 |
| Height (Decimal Inch) | 0.2910 |
| Overall Length/Projection (Decimal Inch) | 0.2910 |
| Web Thinning | Web Thinned |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Insert Holding Method | Twist |
| ISO Number | IDI 160-SG |
| Coolant Through | No |
| Point Type | Thinned |
| Spiral Type | Slow Spiral |
| Style | General Purpose |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
