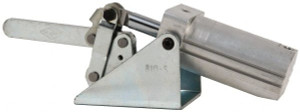

Destaco 750 Lb Inner Hold Capacity, Horiz Mount, Air Power Hold-Down Toggle Clamp 1/8 NPT Port, 145 Max psi, 99° Bar Opening, 45.47mm Height Under Bar 810-S - 89305080
Brand: Destaco- SKU:
- 89305080
- ID:
- 441684
$445.66
Destaco 750 Lb Inner Hold Capacity, Horiz Mount, Air Power Hold-Down Toggle Clamp 1/8 NPT Port, 145 Max psi, 99° Bar Opening, 45.47mm Height Under Bar
Manufacturer Part #: 810-S
S/N: 89305080
UNSPSC: 31162900
UPC: 697437581013
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Power Type | Pneumatic | ||
| Bar End Type | Open | ||
| Holding Capacity - Inner (N) | 3400.00 | ||
| Holding Capacity - Inner (Lb.) | 750.00 | ||
| Bar Opening (Degrees) | 99 | ||
| Bar Style | Solid | ||
| Cylinder Bore Size (Decimal Inch) | 1.5700 | ||
| Cylinder Bore Size (mm) | 39.88 | ||
| Height Under Bar (mm) | 45.47 | ||
| Height Under Bar (Decimal Inch) | 1.7900 | ||
| Bar Extension (Decimal Inch) | 3.5700 | ||
| Bar Extension (mm) | 90.68 | ||
| Length Distance Between Mount Holes (Decimal Inch) | 1.2500 | ||
| Length Distance Between Mount Holes (mm) | 31.75 | ||
| Maximum Air Pressure (bar) | 10.00 | ||
| Maximum Air Pressure (psig) | 145.00 | ||
| Maximum Mechanical Advantage | 2.9 | 1, 5 | 1 |
| Mounting Hole Size (Decimal Inch) | 0.3400 | ||
| Mounting Hole Size (mm) | 8.64 | ||
| Mounting Orientation | Horizontal | ||
| Outer Clamping Force (Lb.) | 500.00 | ||
| Outer Clamping Force (N) | 2220.00 | ||
| Outer Load Capacity (Lb.) | 407.00 | ||
| Outer Load Capacity (N) | 1823.00 | ||
| Overall Closed Height (mm) | 96.30 | ||
| Overall Closed Height (Decimal Inch) | 3.7900 | ||
| Overall Closed Length (mm) | 297.10 | ||
| Overall Closed Length (Decimal Inch) | 11.7000 | ||
| Overall Open Height (Decimal Inch) | 7.8700 | ||
| Overall Open Height (mm) | 87.10 | ||
| Overall Open Length (mm) | 206.50 | ||
| Overall Open Length (Decimal Inch) | 8.1300 | ||
| Sensor Compatibility | Round, T-Slot | ||
| Width Distance Between Mount Holes (Decimal Inch) | 1.7800 | ||
| Width Distance Between Mount Holes (mm) | 45.21 | ||
| UNSPSC Code | 31162900 | ||
| Port Size | 1/8 NPT | ||
| Includes | Bolt Retainer |
