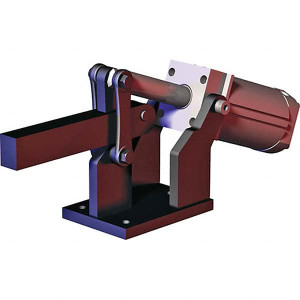

Destaco 4,000 Lb Inner Hold Capacity, Horiz Mount, Air Power Hold-Down Toggle Clamp 1/4 NPT Port, 145 Max psi, 96° Bar Opening, 97.79mm Height Under Bar 858 - 89305262
Brand: Destaco- SKU:
- 89305262
- ID:
- 441691
$987.96
Destaco 4,000 Lb Inner Hold Capacity, Horiz Mount, Air Power Hold-Down Toggle Clamp 1/4 NPT Port, 145 Max psi, 96° Bar Opening, 97.79mm Height Under Bar
Manufacturer Part #: 858
S/N: 89305262
UNSPSC: 31162900
UPC: 697437585806
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Power Type | Pneumatic | |
| Holding Capacity - Inner (N) | 17800.00 | |
| Holding Capacity - Inner (Lb.) | 4000.00 | |
| Bar Opening (Degrees) | 96 | |
| Bar Style | Solid | |
| Height Under Bar (mm) | 97.79 | |
| Height Under Bar (Decimal Inch) | 3.8500 | |
| Bar Extension (Decimal Inch) | 4.8100 | |
| Bar Extension (mm) | 122.17 | |
| Length Distance Between Mount Holes (Decimal Inch) | 4.2500 | |
| Length Distance Between Mount Holes (mm) | 107.95 | |
| Maximum Air Pressure (bar) | 10.00 | |
| Maximum Air Pressure (psig) | 145.00 | |
| Maximum Mechanical Advantage | 4.4 | 2.3 |
| Mounting Hole Size (Decimal Inch) | 0.4100 | |
| Mounting Hole Size (mm) | 10.41 | |
| Mounting Orientation | Horizontal | |
| Outer Clamping Force (Lb.) | 800.00 | |
| Outer Clamping Force (N) | 3585.00 | |
| Outer Load Capacity (Lb.) | 2000.00 | |
| Outer Load Capacity (N) | 8900.00 | |
| Overall Closed Height (mm) | 180.90 | |
| Overall Closed Height (Decimal Inch) | 7.1200 | |
| Overall Closed Length (mm) | 445.00 | |
| Overall Closed Length (Decimal Inch) | 17.5200 | |
| Overall Open Height (Decimal Inch) | 12.2700 | |
| Overall Open Height (mm) | 311.60 | |
| Width Distance Between Mount Holes (Decimal Inch) | 2.7500 | |
| Width Distance Between Mount Holes (mm) | 69.85 | |
| UNSPSC Code | 31162900 | |
| Port Size | 1/4 NPT | |
| Minimum Operating Temperature F | 14 | |
| Maximum Operating Temperature F | 194 | |
| Minimum Operating Temperature C | -10 | |
| Maximum Operating Temperature C | 90 |
