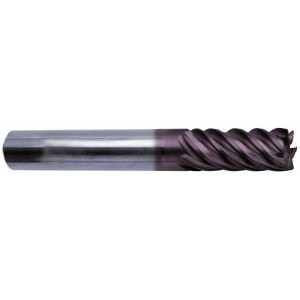

Guhring 5/8" Diam 5 Flute Solid Carbide 0.006" Chamfer Width Corner Chamfer End Mill FIREX Finish, 3-1/2" OAL, 1-1/4" LOC, 5/8" Shank Diam, 45° Helix, RH Cut, RH Flute, Centercutting 9042630158700 - 89476949
Brand: Guhring- SKU:
- 89476949
- ID:
- 615470
$226.81
Guhring 5/8" Diam 5 Flute Solid Carbide 0.006" Chamfer Width Corner Chamfer End Mill FIREX Finish, 3-1/2" OAL, 1-1/4" LOC, 5/8" Shank Diam, 45° Helix, RH Cut, RH Flute, Centercutting
Manufacturer Part #: 9042630158700
S/N: 89476949
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (mm) | 15.88 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 1-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | TiAlN, TiN |
| Overall Length (Inch) | 3-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Chamfer Width (Decimal Inch) | 0.0060 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Close |
| Helix Angle | 45 |
| Overall Length (Decimal Inch) | 3.5000 |
| Chipbreaker | No |
| Chamfer Angle | 45 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Reach Length (Decimal Inch) | 1.2500 |
| Reach Length (Inch) | 1-1/4 |
| Mill Diameter Tolerance | h10 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, K, S |
| Secondary Workpiece Material | Non-Ferrous Metal, Hard Material |
| Secondary Workpiece Material Code | N, H |
| Material Grade | K40 |
| Series | 4263 |
| Additional Information | Shouldering, Slotting, Rampdown, Helical Interpolation, Drill Mill, Plunging & Recessing |
| Coating Classification | PVD |
| Proprietary Coating Designation | FIREX |
| Chamfer Length (Decimal Inch) | 0.0060 |
| Helix Style | High |
| Manufacturers Catalog Number | 9042630158700 |
