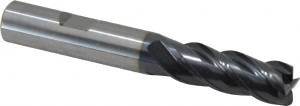

Guhring 1/2" Diam 4 Flute Solid Carbide 0.04" Corner Radius End Mill Super-A Finish, 3-1/2" OAL, 1-1/4" LOC, 1/2" Shank Diam, 35/38° Helix, RH Cut, RH Flute, Centercutting 9038760127050 - 89479273
Brand: Guhring- SKU:
- 89479273
- ID:
- 615462
$178.48
Guhring 1/2" Diam 4 Flute Solid Carbide 0.04" Corner Radius End Mill Super-A Finish, 3-1/2" OAL, 1-1/4" LOC, 1/2" Shank Diam, 35/38° Helix, RH Cut, RH Flute, Centercutting
Manufacturer Part #: 9038760127050
S/N: 89479273
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Super A |
| Overall Length (Inch) | 3-1/2 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0400 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 3.5000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Length Type | Standard |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Corner Radius Tolerance | -0.05 to 0.05 in |
| Mill Diameter Tolerance | h10 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel, Cast Iron, Superalloys & Titanium |
| Primary Workpiece Material Code | P, K, S |
| UNSPSC Code | 27112803 |
| Secondary Workpiece Material | Stainless Steel, Hard Material |
| Secondary Workpiece Material Code | M, H |
| Series | 3876 |
| Material Application | Steel, Cast Iron, Superalloys & Titanium, Stainless Steel, Hard Material |
| For Use With. | End Mill Holders |
| Helix Style | Variable |
