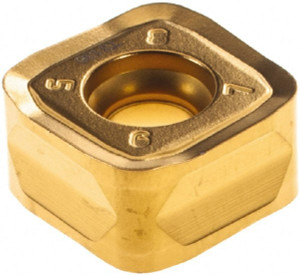

Tungaloy SQMU1206 Grade T3130 Carbide Milling Insert 6887458 - 89666655
Brand: Tungaloy- SKU:
- 89666655
- ID:
- 663380
$49.50
Tungaloy SQMU1206 Grade T3130 Carbide Milling Insert
Manufacturer Part #: 6887458
S/N: 89666655
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SQMU |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | T3130 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2360 |
| Coating/Finish | TiCN, Al2O3 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (mm) | 2.00 |
| Insert Size Code | 1206 |
| Material Grade | P20, M20 |
| Inscribed Circle (Decimal Inch) | 0.4610 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Series | SQMU |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Steel, Stainless Steel |
| Primary Workpiece Material Code | P, M |
| Ansi Code | SQMU1206ZSR-MJ T3130 |
| Iso Code | SQMU1206ZSR-MJ T3130 |
| Standards | ISO |
| Cutting Edge Style | Chamfered, Honed |
| Manufacturers Catalog Number | SQMU1206ZSR-MJ |
| Cutter Series Compatibility | TXQ |
| Chip Breaker | MJ |
| Material Application | Steel, Stainless Steel |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4610 |
| Width (mm - 2 Decimals) | 11.70 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4610 |
