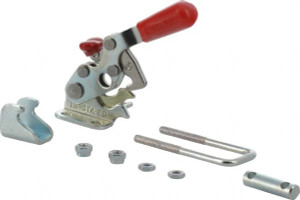

Destaco 360 Lb Capacity, Horizontal, U Hook, Flanged Base, Carbon Steel Pull Action Latch Clamp 1.17" Drawing Movement, 4-1/4" OAL, Threaded U Hook, Straight Handle 323-R - 89927800
Brand: Destaco- SKU:
- 89927800
- ID:
- 441773
$45.43
Destaco 360 Lb Capacity, Horizontal, U Hook, Flanged Base, Carbon Steel Pull Action Latch Clamp 1.17" Drawing Movement, 4-1/4" OAL, Threaded U Hook, Straight Handle
Manufacturer Part #: 323-R
S/N: 89927800
UNSPSC: 31380000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Clamping Orientation | Horizontal |
| Bar Style | U-Hook |
| Load Capacity (N) | 1600.00 |
| Load Capacity (Lb. - 3 Decimals) | 360.00 |
| Load Capacity | 1600N, 360lb |
| Base Style | Flanged |
| Material | Carbon Steel |
| Body Material | Carbon Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 4.2500 |
| Overall Length (mm) | 107.95 |
| Overall Length (Inch) | 4-1/4 |
| Overall Height (Mm - 5 Decimals) | 30.23 |
| Overall Height (Decimal Inch) | 1.1900 |
| Drawing Movement (mm) | 29.72 |
| Drawing Movement (Decimal Inch) | 1.1700 |
| Handle Color | Red |
| Base Length | 1.02 |
| Base Length (mm) | 25.91 |
| Base Width (Inch) | 1.1000 |
| Base Width | 27.94 |
| Mounting Hole Diameter (mm) | 4.32 |
| Mounting Hole Diameter | 0.1700 |
| Width Distance Between Mount Holes (Inch) | 3/4 |
| Width Distance Between Mount Holes (mm) | 19.05 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.6300 |
| Length Distance Between Mount Holes (mm) | 16.00 |
| Bar Width (Decimal Inch) | 0.7500 |
| Bar Width | 0.75in, 19.05mm |
| Base to Center of Bar (mm) | 11.94 |
| Base to Center of Bar (Decimal Inch) | 0.4700 |
| Includes | Latch Plate, Threaded U-Hook, Thumb Control Lever |
| Width Distance Between Mounting Holes | 0.7500 |
| UNSPSC Code | 31162900 |
