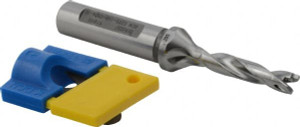

Iscar 0.295 to 0.311", 5xD, 1.48" Max Depth, 1/2" Shank Diam, 3.84" OAL, Replaceable-Tip Drill Uses FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Inserts, Seat Size 7, DCN Toolholder, Series SumoCham 3202947 - 91105056
Brand: Iscar- SKU:
- 91105056
- ID:
- 645333
$450.33
Iscar 0.295 to 0.311", 5xD, 1.48" Max Depth, 1/2" Shank Diam, 3.84" OAL, Replaceable-Tip Drill Uses FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Inserts, Seat Size 7, DCN Toolholder, Series SumoCham
Manufacturer Part #: 3202947
S/N: 91105056
UNSPSC: 23291502
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Drill Diameter (Decimal Inch) | 0.2950 |
| Maximum Drill Diameter (Decimal Inch) | 0.3110 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 1.4800 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1/2in |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Seat Size | 7 |
| Maximum Drill Depth Range (Decimal Inch) | 0.0000 to 1.5000 |
| Compatible Insert Style | FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M |
| Overall Length (Decimal Inch) | 3.8400in |
| Series | SumoCham |
| Toolholder Style | DCN |
| Body Length (Decimal Inch) | 2.0700in |
| Shank Length (Decimal Inch) | 1.7700in |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
