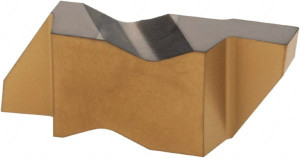

Iscar ING3105R IC808 Carbide Grooving Insert TiAlN Finish, RH, 0.105" Cutting Width, 0.15" Max Depth, Series Notch-Grip 6405388 - 91136069
Brand: Iscar- SKU:
- 91136069
- ID:
- 649227
$34.53
Iscar ING3105R IC808 Carbide Grooving Insert TiAlN Finish, RH, 0.105" Cutting Width, 0.15" Max Depth, Series Notch-Grip
Manufacturer Part #: 6405388
S/N: 91136069
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | ING |
| Insert Size Code | 3105 |
| Cutting Width (Decimal Inch) | 0.1050 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC808 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0080 |
| Rake | Positive |
| Insert Holding Method | Clamp |
| Insert Size | 3105 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1500 to 0.2000 |
| Lead Angle | 3 |
| Multi-use Tool | No |
| Series | Notch-Grip |
| Coating Process | PVD |
| Rake Angle | 3.00 |
| Overall Length (Decimal Inch) | 0.9000 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Insert Seat Size | 3 |
| MSC/Manufacturer Number | ING 3105R |
| Coating/Finish | AlTiN, TiAlN, TiN |
| Single Or Double End | Double |
