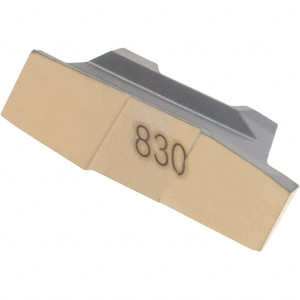

Iscar GIP0.800.00LX IC830 Carbide Grooving Insert TiAlN Finish, LH, 0.8mm Cutting Width, 1.6mm Max Depth, Series Cut Grip 6405053 - 91136994
Brand: Iscar- SKU:
- 91136994
- ID:
- 649259
$56.20
Iscar GIP0.800.00LX IC830 Carbide Grooving Insert TiAlN Finish, LH, 0.8mm Cutting Width, 1.6mm Max Depth, Series Cut Grip
Manufacturer Part #: 6405053
S/N: 91136994
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | GIP |
| Insert Size Code | 080000 |
| Cutting Width (Decimal Inch) | 0.0315 |
| Cutting Width (mm) | 0.80 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0630 |
| Maximum Depth of Cut (mm) | 1.60 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC830 |
| Full Radius | No |
| Rake | Positive |
| Insert Holding Method | Clamp |
| Insert Size | 080000 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Multi-use Tool | No |
| Series | Cut Grip |
| Coating Process | PVD |
| Rake Angle | 7.00 |
| Overall Length (mm) | 15.30 |
| Primary Workpiece Material | Superalloy, Titanium |
| Primary Workpiece Material Code | M, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | X |
| Coating/Finish | AlTiN, TiN |
| Single Or Double End | Double |
