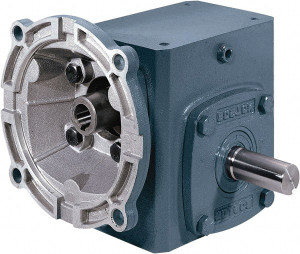

Boston Gear 1 Centerline Distance, 15:1, 117 RPM Output, 0.33 Input Horsepower, 146 Lbs. Max Torque, Speed Reducer Part No. F710-15-B4-J, Single Shaft Right, 1/2" Bore, 2.31" High, 42C NEMA 51857 - 91229518
Brand: Boston Gear- SKU:
- 91229518
- ID:
- 558502
$782.37
Boston Gear 1 Centerline Distance, 15:1, 117 RPM Output, 0.33 Input Horsepower, 146 Lbs. Max Torque, Speed Reducer Part No. F710-15-B4-J, Single Shaft Right, 1/2" Bore, 2.31" High, 42C NEMA
Manufacturer Part #: 51857
S/N: 91229518
UNSPSC: 26111500
UPC: 781711518571
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Centerline Distance | 1.0000 | |
| Reducer Type | Quill | |
| Shaft Type | Single | |
| Ratio | 15 | 1 |
| Shaft Orientation | Right Angle | |
| Center-to-center Shaft Distance | 1.0000in | |
| PartNo | F710-15-B4-J | |
| Speed Ratio | 15 | 1 |
| Maximum Input Horsepower | 0.33 | |
| Maximum Output Speed | 116.7RPM | |
| Nema/Iec Frame Size | 42CZ NEMA | |
| Maximum Input Speed | 4500.0RPM | |
| Maximum Torque (In/Lb.) | 146.0 | |
| Bore Diameter (Decimal Inch) | 0.5000 | |
| Shaft Diameter (Decimal Inch) | 0.5000 | |
| Gear Type | Worm | |
| Housing Material | Cast Iron | |
| Overall Length (Decimal Inch) | 5.7600 | |
| Overall Width (Decimal Inch - 4 Decimals) | 4.7800 | |
| Standards | ISO 9001 | 2015 |
| Output RPM at 1750 Input | 117.0 | |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750 | 146 | |
| Torque Output (In/Lb) with 1/6 Horsepower Motor @ 1750 | 74 | |
| Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750 | 111 | |
| Height (Decimal Inch) | 2.3100 |
