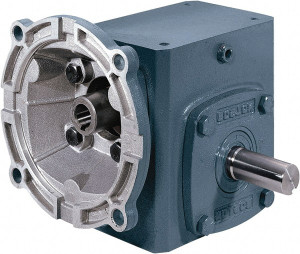

Boston Gear 3-1/4 Centerline Distance, 20:1, 88 RPM Output, 4.63 Input Horsepower, 2,558 Lbs. Max Torque, Speed Reducer Part No. F732-20-B9-J, Single Shaft Right, 1-1/8" Bore, 6-3/4" High, 180TC NEMA 52064 - 91229880

Brand: Boston Gear

SKU:: 91229880

ID:: 559061

781711520642

$4,036.21

Current Stock:

Adding to cart… The item has been added

Boston Gear 3-1/4 Centerline Distance, 20:1, 88 RPM Output, 4.63 Input Horsepower, 2,558 Lbs. Max Torque, Speed Reducer Part No. F732-20-B9-J, Single Shaft Right, 1-1/8" Bore, 6-3/4" High, 180TC NEMA

Manufacturer Part #: 52064

S/N: 91229880

UNSPSC: 26111500

UPC: 781711520642

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Centerline Distance	3.2500
Shaft Type	Single
Ratio	20	1
PartNo	F732-20-B9-J
Maximum Input Horsepower	4.63
Nema/Iec Frame Size	180TC NEMA
Maximum Torque (In/Lb.)	2558.0
Bore Diameter (Decimal Inch)	1.1250
Output RPM at 1750 Input	88.0
Torque Output (In/Lb) with 3 Horsepower Motor @ 1750	1950
Height (Decimal Inch)	6.7500
