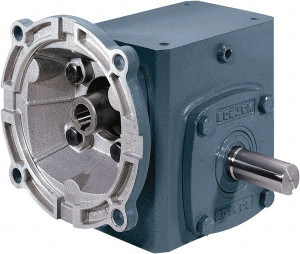

Boston Gear 1.54 Centerline Distance, 10:1, 175 RPM Output, 1.2 Input Horsepower, 397 Lbs. Max Torque, Speed Reducer Part No. F715-10-B5-J, Single Shaft Right, 5/8" Bore, 3.44" High, 56C NEMA 51902 - 91230482

Brand: Boston Gear

SKU:: 91230482

ID:: 558722

781711519028

$967.39

Current Stock:

Adding to cart… The item has been added

Boston Gear 1.54 Centerline Distance, 10:1, 175 RPM Output, 1.2 Input Horsepower, 397 Lbs. Max Torque, Speed Reducer Part No. F715-10-B5-J, Single Shaft Right, 5/8" Bore, 3.44" High, 56C NEMA

Manufacturer Part #: 51902

S/N: 91230482

UNSPSC: 26111500

UPC: 781711519028

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Centerline Distance	1.5400
Shaft Type	Single
Ratio	10	1
PartNo	F715-10-B5-J
Maximum Input Horsepower	1.20
Nema/Iec Frame Size	56C NEMA
Maximum Torque (In/Lb.)	397.0
Bore Diameter (Decimal Inch)	0.6250
Output RPM at 1750 Input	175.0
Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750	165
Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750	248
Torque Output (In/Lb) with 1 Horsepower Motor @ 1750	330
Height (Decimal Inch)	3.4400

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.
