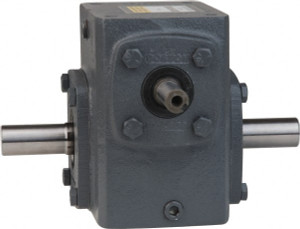

Boston Gear 5.16 Centerline Distance, 15:1, 117 RPM Output, 16.32 Input Horsepower, 7,829 Lbs. Max Torque, Speed Reducer Part No. 752-15-H, 1-1/4" Shaft Diam, Double Shaft Left & Right, 10-1/2" High 51811 - 91236562

Brand: Boston Gear

SKU:: 91236562

ID:: 559200

781711518113

$6,490.33

Current Stock:

Adding to cart… The item has been added

Boston Gear 5.16 Centerline Distance, 15:1, 117 RPM Output, 16.32 Input Horsepower, 7,829 Lbs. Max Torque, Speed Reducer Part No. 752-15-H, 1-1/4" Shaft Diam, Double Shaft Left & Right, 10-1/2" High

Manufacturer Part #: 51811

S/N: 91236562

UNSPSC: 26111500

UPC: 781711518113

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Centerline Distance	5.1600
Shaft Type	Double
Ratio	15	1
PartNo	752-15-H
Maximum Input Horsepower	16.32
Maximum Torque (In/Lb.)	7829.0
Shaft Diameter (Decimal Inch)	1.2500
Output RPM at 1750 Input	117.0
Torque Output (In/Lb) with 5 Horsepower Motor @ 1750	2533
Height (Decimal Inch)	10.5000
