Boston Gear

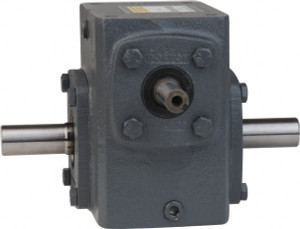

Boston Gear 2.38 Centerline Distance, 10:1, 175 RPM Output, 3.18 Input Horsepower, 1,069 Lbs. Max Torque, Speed Reducer Part No. 724-10-H, 3/4" Shaft Diam, Double Shaft Left & Right, 4.88" High

Manufacturer Part #: 51712

S/N: 91236893

UNSPSC: 26111500

UPC: 781711517123

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Centerline Distance2.3800
Reducer TypeQuill
Shaft TypeDouble
Ratio101
Shaft OrientationRight Angle
Center-to-center Shaft Distance2.3800in
PartNo724-10-H
Speed Ratio101
Maximum Input Horsepower3.18
Maximum Output Speed175.0RPM
Maximum Torque (In/Lb.)1069.0
Bore Diameter (Decimal Inch)1.1250
Shaft Diameter (Decimal Inch)0.7500
Gear TypeWorm
Housing MaterialCast Iron
Overall Width (Decimal Inch - 4 Decimals)7.8100
StandardsISO 90012015
Output RPM at 1750 Input175.0
Height (Decimal Inch)4.8800
