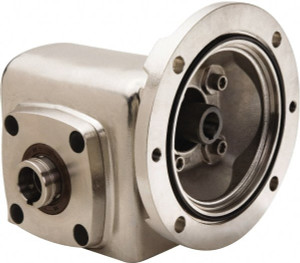

Boston Gear 1-3/4 Centerline Distance, 20:1, 88 RPM Output, 0.97 Input Horsepower, 590 Lbs. Max Torque, Speed Reducer Part No. SSHF71820KB5HSP16, 1" Shaft Diam, Hollow Shaft, 5/8" Bore, 3.81" High, 56C NEMA D01665 - 91242941

Brand: Boston Gear

SKU:: 91242941

ID:: 558795

884107189697

$2,382.41

Current Stock:

Adding to cart… The item has been added

Boston Gear 1-3/4 Centerline Distance, 20:1, 88 RPM Output, 0.97 Input Horsepower, 590 Lbs. Max Torque, Speed Reducer Part No. SSHF71820KB5HSP16, 1" Shaft Diam, Hollow Shaft, 5/8" Bore, 3.81" High, 56C NEMA

Manufacturer Part #: D01665

S/N: 91242941

UNSPSC: 26111500

UPC: 884107189697

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Centerline Distance	1.7500
Shaft Type	Hollow
Ratio	20	1
PartNo	SSHF71820KB5HSP16
Maximum Input Horsepower	0.97
Nema/Iec Frame Size	56C NEMA
Maximum Torque (In/Lb.)	590.0
Bore Diameter (Decimal Inch)	0.6250
Shaft Diameter (Decimal Inch)	1.0000
Housing Material	Stainless Steel
Output RPM at 1750 Input	88.0
Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750	304
Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750	456
Torque Output (In/Lb) with 1 Horsepower Motor @ 1750	590
Height (Decimal Inch)	3.8100
