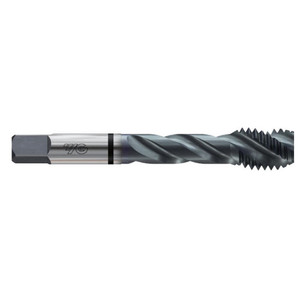

YG-1 Spiral Flute Taps, Thread Size (Inch): 3/8-16, Thread Standard: UNC, Chamfer: Plug, Material: High-Speed Steel-E, Thread Limit: H3, Class Of Fit: 3B T2483C - 91282822
Brand: YG-1- SKU:
- 91282822
- ID:
- 772527
$30.62
YG-1 Spiral Flute Taps, Thread Size (Inch): 3/8-16, Thread Standard: UNC, Chamfer: Plug, Material: High-Speed Steel-E, Thread Limit: H3, Class Of Fit: 3B
Manufacturer Part #: T2483C
S/N: 91282822
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | 3/8-16 |
| Thread Standard | UNC |
| Chamfer | Plug |
| Material | High-Speed Steel-E |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Coating/Finish | TiCN |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | K, M, N, P |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Helix Angle | 40 |
| Oversize | No |
| Threads per Inch | 16 |
| Overall Length (Inch) | 2-47/50 |
| Thread Length (Decimal Inch) | 0.5510 |
| Thread Length (mm) | 14.00 |
| Thread Length (Inch) | 27/49 |
| Overall Length (Decimal Inch) | 2.9400 |
| Overall Length (mm) | 74.68 |
| Thread Pitch (Decimal Inch) | 0.0625 |
| Thread Pitch (mm) | 1.5875 |
| Thread Pitch (Inch) | 1/16 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Shank Diameter (mm) | 9.68 |
| Neck Length (mm) | 7.29 |
| Neck Length (Inch) | 2/7 |
| Neck Length (Decimal Inch) | 0.2870 |
| Tapping Depth (Decimal Inch) | 0.9375 |
| Tapping Depth (mm) | 23.81 |
| Tapping Depth (Fractional Inch) | 15/16 |
| Square Length (mm) | 11.18 |
| Square Length (Inch) | 11/25 |
| Square Length (Decimal Inch) | 0.4400 |
| Square Size (Decimal Inch) | 0.2860 |
| Square Size (mm) | 7.26 |
| Flute Style | Spiral |
| Series | T2-C |
| Shank Length (mm) | 9.68 |
| Shank Length (Decimal Inch) | 0.3810 |
| UNSPSC Code | 23241600 |
