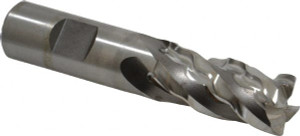

Niagara Cutter 3/4" Diam 4 Flute Cobalt 0.03" Chamfer Width Corner Chamfer End Mill Uncoated, 5-1/4" OAL, 3" LOC, 3/4" Shank Diam, RH Cut, RH Flute, Centercutting 17013176 - 91350470

Niagara Cutter 3/4" Diam 4 Flute Cobalt 0.03" Chamfer Width Corner Chamfer End Mill Uncoated, 5-1/4" OAL, 3" LOC, 3/4" Shank Diam, RH Cut, RH Flute, Centercutting 17013176 - 91350470

Brand:   Niagara Cutter
SKU:
91350470
ID:
616906
UPC:
698036689506
callling
$192.47
Current Stock:
Adding to cart… The item has been added

Niagara Cutter

Niagara Cutter 3/4" Diam 4 Flute Cobalt 0.03" Chamfer Width Corner Chamfer End Mill Uncoated, 5-1/4" OAL, 3" LOC, 3/4" Shank Diam, RH Cut, RH Flute, Centercutting

Manufacturer Part #: 17013176

S/N: 91350470

UNSPSC: 27112803

UPC: 698036689506

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Inch)3/4
Mill Diameter (Decimal Inch)0.7500
Number Of Flutes4
Length of Cut (Inch)3
Single Or Double EndSingle
End Mill MaterialCobalt
Coating/FinishBright/Uncoated
Overall Length (Inch)5-1/4
CentercuttingYes
Flute DirectionRight Hand
Chamfer Width (Decimal Inch)0.0300
Variable IndexNo
Variable HelixNo
Cutting DirectionRight Hand
Coolant ThroughNo
PitchSuper Close
Overall Length (Decimal Inch)5.2500
ChipbreakerNo
Chamfer Angle45
Length Of Cut (Decimal Inch - 4 Decimals)3.0000
Length TypeLong
Flute TypeHelical
Extended ReachNo
Shank TypeWeldon Flat
Material Removal TypeRoughing
Shank Diameter (Decimal Inch)0.7500
Shank Diameter (Inch)3/4
Reach Length (Decimal Inch)3.0000
Reach Length (Inch)3
Mill Diameter Tolerance+0.0020 to -0.0000 in
Primary Workpiece MaterialStainless Steel, Superalloys & Titanium
Primary Workpiece Material CodeM, S
UNSPSC Code27112803
Material GradeM42
SeriesVFP635
Additional InformationShouldering, Slotting, Rampdown, Helical Interpolation, Drill Mill, Plunging & Recessing
Coating ClassificationUncoated
Proprietary Coating DesignationUncoated
Chamfer Length (Decimal Inch)0.0300
Helix StyleMedium
Manufacturers Catalog NumberVFP435-0.750-D4-C030.3-Z4
