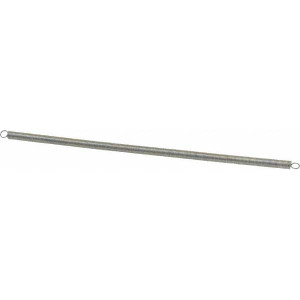

Gardner Spring 0.23" OD, 3.66 Lb Max Load, 13.73" Max Ext Len, 0.0286" Wire Diam Spring 0.45 Lb/In Rating V46C - 91665232

Brand: Gardner Spring

SKU:: 91665232

ID:: 585209

$22.78

Current Stock:

Adding to cart… The item has been added

Gardner Spring 0.23" OD, 3.66 Lb Max Load, 13.73" Max Ext Len, 0.0286" Wire Diam Spring 0.45 Lb/In Rating

Manufacturer Part #: V46C

S/N: 91665232

UNSPSC: 31161907

(Minimum Order Quantity=1, Package Quantity=6)

Specifications:

Outside Diameter (Decimal Inch - 4 Decimals)	0.2300
Spring Rate	0.4500
Material	Steel
Overall Length (Decimal Inch)	8.0000
Overall Length (Inch)	8
Initial Tension (Lb.)	0.8000
Maximum Extended Length (Decimal Inch)	13.7300
Finish/Coating	Galvanized, Zinc-Plated
Number Of Pieces	6
Maximum Work Load (Lb.)	3.6600
Wire Size (Decimal Inch)	0.0286
