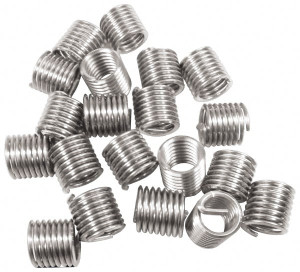

Recoil Screw-Locking Insert: Stainless Steel, #8-36 Metric Coarse, 1D 0.164" OAL, Tangless, Dry Film Lubricant Finish, Stainless Steel 14582D - 91908269
Brand: Recoil- SKU:
- 91908269
- ID:
- 786417
$0.43
Recoil Screw-Locking Insert: Stainless Steel, #8-36 Metric Coarse, 1D 0.164" OAL, Tangless, Dry Film Lubricant Finish, Stainless Steel
Manufacturer Part #: 14582D
S/N: 91908269
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | #8-36 |
| Insert Length (Decimal Inch) | 0.1640 |
| Overall Insert Length (Decimal Inch) | 0.1640 |
| Tang | Tangless |
| Thread Standard | Metric Coarse |
| Material | Stainless Steel |
| Number of Free Coils | 3-7/8 |
| Length to Diameter Ratio | 1D |
| Minimum Outside Diameter (Decimal Inch) | 0.2040 |
| Maximum Outside Diameter (Decimal Inch) | 0.2240 |
| Maximum Locking Torque (In/Lb) | 9 |
| Minimum Break Away Torque (In/Lb) | 1.50 |
| Coating/Finish | Dry Film Lubricant |
| Number Of Inserts | 1 |
