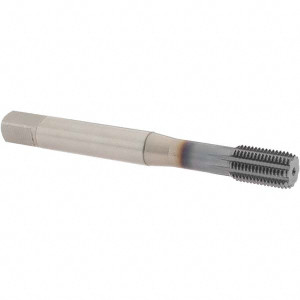

OSG Thread Forming Tap: M10x1.00 Metric Fine, 6H Class of Fit, Modified Bottoming, Cobalt, TiCN Coated 1-1/4" Thread Length, 90 mm OAL, D8, Series 16350 1635010018 - 92171214
Brand: OSG USA, INC.- SKU:
- 92171214
- ID:
- 782888
$128.98
OSG Thread Forming Tap: M10x1.00 Metric Fine, 6H Class of Fit, Modified Bottoming, Cobalt, TiCN Coated 1-1/4" Thread Length, 90 mm OAL, D8, Series 16350
Manufacturer Part #: 1635010018
S/N: 92171214
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M10x1 |
| Thread Standard | Metric Fine |
| Chamfer | Modified Bottoming |
| Chamfered Threads | 2.5-3P |
| Material | Cobalt |
| Coating/Finish | V |
| Coolant Through | No |
| Class Of Fit | 6H |
| Thread Limit | D8 |
| Overall Length (Decimal Inch) | 3.5432999999999999 |
| Overall Length (mm) | 90.00 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.5906 |
| Thread Length (mm) | 15.00 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Shank Diameter (mm) | 9.68 |
| Square Length (mm) | 11.11 |
| Material Application | Aluminum, Cast Aluminum, Hardened Steel, Carbon Steel, Alloy Steel, Die Steel, Stainless Steel, High-Nickel Alloy, Titanium |
| Application | Blind Hole Threading, Through-Hole Threading |
| Series | 16350 |
| Tapping Depth (Decimal Inch) | 1.3780 |
| Tapping Depth (mm) | 35.00 |
| Square Size (Decimal Inch) | 0.2860 |
| Square Size (mm) | 7.26 |
| Material Application Code | P, M, N, H |
| Trade Name | EXOPRO XPF |
