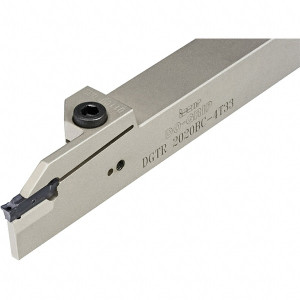

Iscar 24.89mm Max Depth, 4mm to 4mm Width, External Left Hand Indexable Grooving/Cutoff Toolholder 6" OAL, 3/4" x 3/4" Shank, Uses DG.. Inserts, DGT Toolholder, Series Do-Grip 2301938 - 92174515
Brand: Iscar- SKU:
- 92174515
- ID:
- 685991
$369.90
Iscar 24.89mm Max Depth, 4mm to 4mm Width, External Left Hand Indexable Grooving/Cutoff Toolholder 6" OAL, 3/4" x 3/4" Shank, Uses DG.. Inserts, DGT Toolholder, Series Do-Grip
Manufacturer Part #: 2301938
S/N: 92174515
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9800 |
| Maximum Depth of Cut (mm) | 24.89 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Maximum Groove Width (mm) | 4.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Toolholder Style | DGT |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | DGN-UT/UA, DGN/DGNC/DGNM-C, DGN/DGNM-J/JS/JT, DGR/L-C DGRC/LC-C, DGR/L-J/JS |
| Insert Compatibility | DG.. |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Length (Decimal Inch) | 3.8500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Inch) | 3/4 |
| Series | Do-Grip |
| Overall Length (Decimal Inch) | 5.5000 |
| Cutting Tool Application | Cut-Off, Grooving |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6800 |
| Head Length (Decimal Inch) | 1.6500 |
| Standards | ISO 13399 |
| Complete Insert Compatibility | DGN-UT/UA, DGN/DGNC/DGNM-C, DGN/DGNM-J/JS/JT, DGR/L-C DGRC/LC-C, DGR/L-J/JS |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
