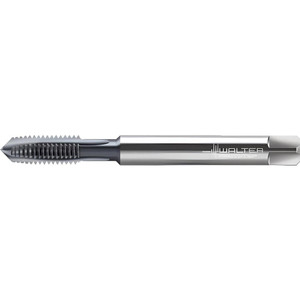

Walter Prototyp Spiral Point Tap: #4-40 UNC, 2 Flutes, Plug Chamfer, 3B Class of Fit, High-Speed Steel-E-PM, TiCN Coated 10.01 mm Thread Length, 1-7/8" OAL, Right Hand, Series A2220766 5934160 - 92177187
Brand: Walter Prototyp- SKU:
- 92177187
- ID:
- 776669
$51.22
Walter Prototyp Spiral Point Tap: #4-40 UNC, 2 Flutes, Plug Chamfer, 3B Class of Fit, High-Speed Steel-E-PM, TiCN Coated 10.01 mm Thread Length, 1-7/8" OAL, Right Hand, Series A2220766
Manufacturer Part #: 5934160
S/N: 92177187
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | #4-40 |
| Thread Standard | UNC |
| Chamfer | Plug |
| Material | HSS-E-PM |
| Class Of Fit | 3B |
| Coating/Finish | TiCN |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 2 |
| Material Application | Steel, Stainless Steel, Non-Ferrous Metal, Superalloys & Titanium |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 40 |
| Overall Length (Inch) | 1-7/8 |
| Overall Length (Decimal Inch) | 1.878 |
| Thread Pitch (Decimal Inch) | 0.025 |
| Overall Length (mm) | 47.63 |
| Thread Length (Decimal Inch) | 0.3940 |
| Thread Length (mm) | 10.01 |
| Shank Diameter (mm) | 3.58 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Application | Through-Hole Threading |
| Neck Length (Decimal Inch) | 0.0512 |
| Square Size (mm) | 2.79 |
| Series | A2220766 |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
