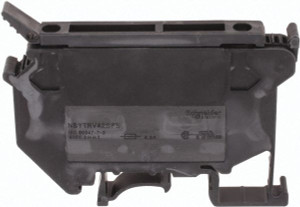

Schneider Electric 1 Pole, 500 Volt, 6.3 Amp, -40 to 266°F, DIN Rail Mount, Polyamide Fused Terminal Block 3 Contacts, 26 to 10 AWG Compatibility, 56-1/2mm High NSYTRV42SF5 - 92419076
Brand: Schneider Electric- SKU:
- 92419076
- ID:
- 591203
$14.17
Schneider Electric 1 Pole, 500 Volt, 6.3 Amp, -40 to 266°F, DIN Rail Mount, Polyamide Fused Terminal Block 3 Contacts, 26 to 10 AWG Compatibility, 56-1/2mm High
Manufacturer Part #: NSYTRV42SF5
S/N: 92419076
UNSPSC: 39121410
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Block Type | Fused |
| Mounting Type | DIN Rail Mount |
| Voltage | 500 V |
| Amperage | 6.30 |
| Number of Contacts | 3 |
| Number of Poles | 1 |
| Number of Rows | 1 |
| Maximum Compatible Wire Size (AWG) | 10 |
| Maximum Compatible Wire Size (sq mm) | 4 |
| Minimum Compatible Wire Size (AWG) | 26 |
| Minimum Compatible Wire Size (sq mm) | 0.20 |
| Block Material | Polyamide |
| Block Color | Black |
| Maximum Operating Temperature (F) | 266 |
| Minimum Operating Temperature (F) | -40 |
| Overall Height (mm) | 56-1/2 |
| Overall Length (mm) | 72-1/2 |
| Overall Width (mm) | 8.20 |
| Standards Met | CSA, GOSTVDE 0304-T21, IEC 60216-1, RoHS Compliant, UL |
