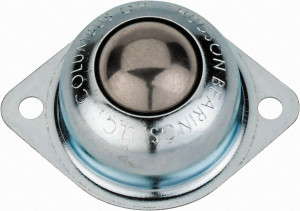

Hudson Bearings 1 Inch Diameter, Oval, Carbon Steel Ball Transfer 1.1875 Inch Mount Height, 75 Lb. Capacity BT-1CS - 92421064
Brand: Hudson Bearings- SKU:
- 92421064
- ID:
- 465727
$3.40
Hudson Bearings 1 Inch Diameter, Oval, Carbon Steel Ball Transfer 1.1875 Inch Mount Height, 75 Lb. Capacity
Manufacturer Part #: BT-1CS
S/N: 92421064
UNSPSC: 31162700
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Base Shape | Oval |
| Diameter (mm) | 25.40 |
| Mount Type | Flange |
| Ball Diameter (mm) | 25.40 |
| Mount Height (Fractional Inch) | 1-3/16 |
| Mount Height (Decimal Inch) | 1.1900 |
| Mount Height (mm) | 30.20 |
| Ball Material | Carbon Steel |
| Overall Diameter (Mm - 4 Decimals) | 25.40 |
| Mounting Hole Diameter (Decimal Inch) | 0.2200 |
| Mounting Hole Diameter (mm) | 5.60 |
| Overall Length (mm) | 69.85 |
| Housing Material | Carbon Steel |
| Ball Spacing (mm) | 55.60 |
| Number Of Mounting Holes | 2 |
| Projection (mm) | 30.20 |
| Projection (Decimal Inch) | 1.1880 |
| Hardness | Hard |
| Base Diameter (mm) | 69.90 |
| Base Diameter (Decimal Inch) | 2.7500 |
